SR Hydraulic Planetary Gear Winch

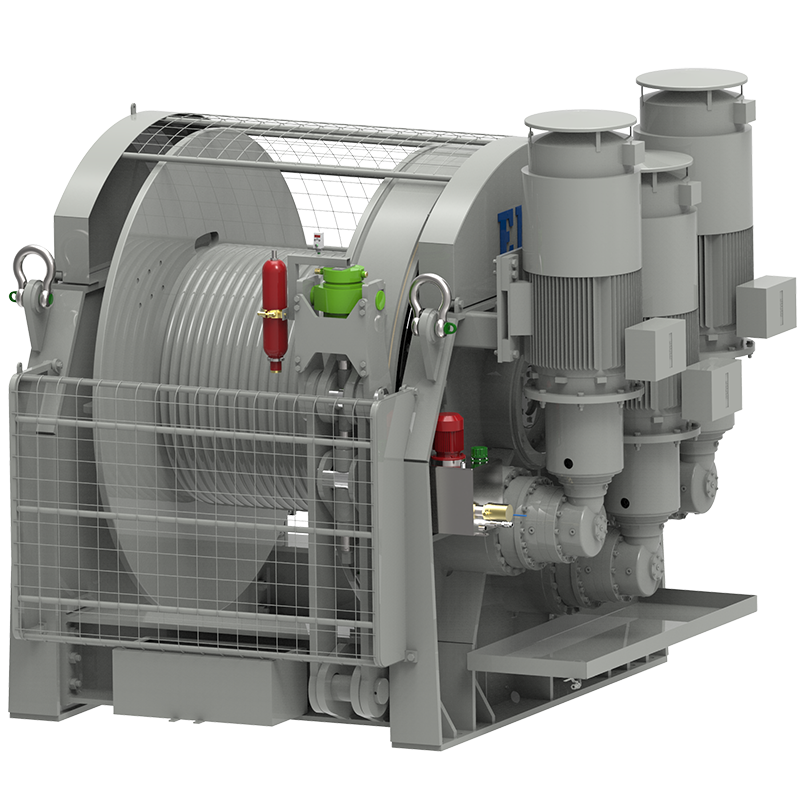

The winch is constructed with a slew ring in combination with 3 or more planetary drives and motors. Capacities can go up to 75 tons of lifting capacity with this range.

Although the name of this planetary gear winch indicates different, these winches are very suitable to suit your specific winch application. Several options can be offered on these highly versatile winches. Prices and drawings will be supplied upon request.

STANDARD FEATURES

• Heavy duty slew ring
• Heavy duty planetary gearboxes fitted with pinions
• SR E IP 54 400 V AC / 3-phases / 50 Hz braked motors
• SR H orbit or radial piston type hydraulic motor complete with brake valve
• Steel drum with cable fixing point at flange
• Double layer 2-component conservation according ISO 12944 category C2-Low, colour RAL 5010
• FEM / ISO class: T3-L3-M4

AVAILABLE OPTIONS

• IP 56 TENV cast iron motors
• Explosion-proof motors
• Protective steel motor cover
• Band brakes (manual or fail-safe automatic)
• Alternative speeds
• Alternative supply voltages
• Drum guards
• Spooling gears
• Grooved drums
• Slip ring or swivel mounting
• Alternative drum dimensions / split drums / additional rope anchors / etc.

AVAILABLE CONTROL OPTIONS

• Control box IP 55 with push buttons and emergency stop built acc. to NEN 1010
• Control box IP 66 with low voltage IP 65 remote control built acc. to NEN 1010
• Load limiter (required by CE for applications exceeding 1000 kg WLL)
• Frequency inverter for speed control
• Wireless radio remote control systems
• Limit switches
• Slack wire switches
• Proportional local or remote control valve
