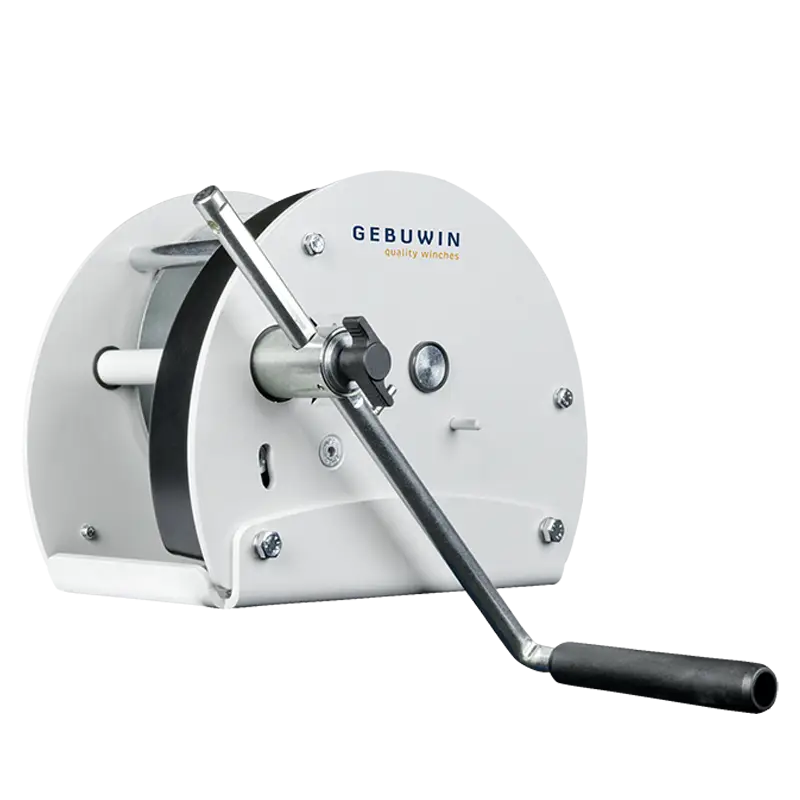

CW700 Spur Gear Console Hand Winch

The free spool function enables quick disengagement of the drum, allowing the wire to be pulled out effortlessly—ideal for time-sensitive operations. Built for durability and resistance to harsh conditions, this winch comes with an IP54 water resistance rating. It is also available in zinc-plated steel for corrosion protection, as well as stainless steel 304 and 316, ensuring longevity in demanding environments.

Perfect for heavy-duty manual operations, this spur gear winch combines speed, strength, and ease of use, making it a valuable asset for lifting and pulling tasks in various industries.

Console Winch Standard Features

• EN13157 Compliant – Ideal for lifting and pulling with full EN13157 safety standards compliance.
• Static Safety Factor 4 – Ensures secure load handling with a 4:1 safety ratio.
• IP54 Protection – Provides dust and water resistance, suitable for both indoor and outdoor use.
• Double Ratchet Load Brake – Ensures stable hold of loads in any position.
• Multiple Cable Outlet Positions – Choose from upward, downward, or left-side cable outlet options.
• Enclosed Gearbox – Protects internal components from dust and environmental exposure.
• Free Spool Function – Quickly disengage the drum for faster rope deployment.
• Adjustable Crank – Customize the handle length for better leverage and ease of use.
• Wall & Floor Mounting – Flexible mounting options for various installation needs.
• Protective Paint Coating – Single-layer paint finish for enhanced durability and wear resistance.

Console Winch Available Options

• Zinc-Plated Finish – Offers corrosion resistance (6-8 microns).
• Stainless Steel Grades 304 & 316 – Ideal for marine and industrial environments.
• ATEX Certification – Certified for explosive environments (Zone 2 & 22).
  • CE II 3G Ex IIC T4 Gc, -20°C<T amb <+70°C
  • CE II 3D Ex IIIC T135°C Dc, -20°C<T amb <+70°C
• Custom Options – Tailor the winch for your specific needs on request.

Accessories for Console Winch

• Steel/Stainless Steel Rope – Choose the right rope for strength and durability.
• Pulley Block – Distribute loads evenly for better handling and efficiency.

Other Products in the Gebuwin Hand Winch range:

• Worm Gear Hand Winch – WW250-1500 Series
• Theatre Worm Gear Hand Winch – TW300 Series
• Marine Worm Gear Hand Winch – MR3000-5000 C5M Series
• Full Stainless Steel Worm Gear Hand Winch – MR500-5000 SST Series
• Spur Gear Hand Winch – TL150
• Spur Gear Hand Winch – TL300-600
• Spur Gear Hand Winch – TL1000-1500

Can’t see what you’re looking for? Explore all of our Gebuwin Winches or get in touch to discuss your lifting project with a member of our lifting team.
