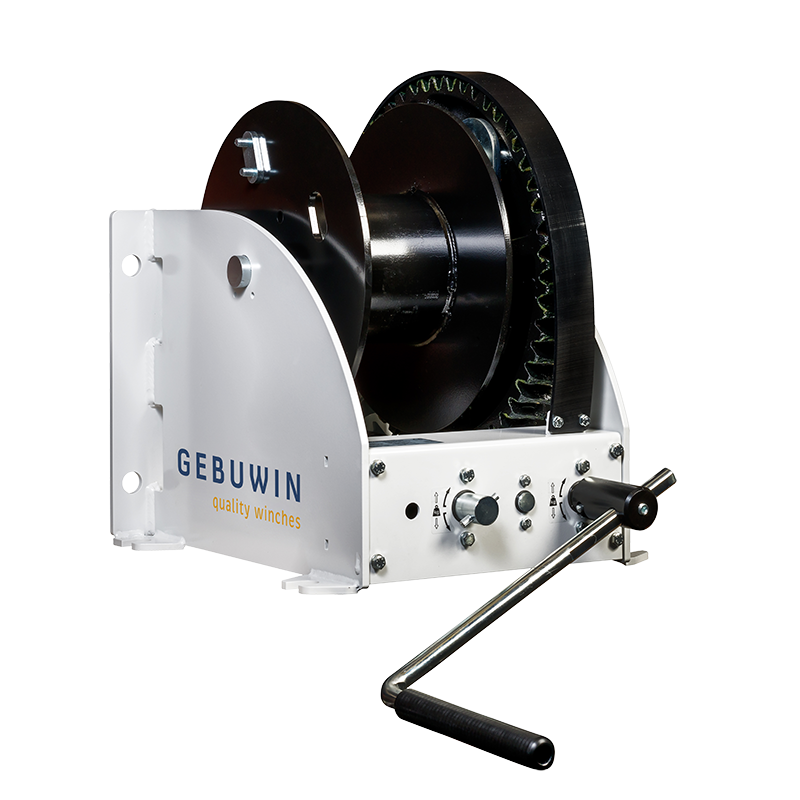

WW2000-7500 Worm Gear Hand Winch

The WW range of hand winches from Gebuwin is incredibly safe due to the natural braking effect of the worm gear transmission in combination with the load pressure brake. In addition, the winch is easy to use, can be mounted in various ways and has cable storage of up to 120 metres.

STANDARD FEATURES

• Robust, safe lifting and pulling winch in compliance with EN13157
• Static safety factor 4
• Two lifting speeds
• Right angled, easy to grease worm transmission
• Maintenance free bearings
• Load pressure brake with double ratchet system
• Cable outlet upwards, downwards or at rear
• Adjustable crank, with ergonomic grip
• Suitable for wall and floor mounting
• Large rope capacity
• Simple and quick attachment
• Corrosion resistant
• Paint system for C1M

AVAILABLE OPTIONS

• Zinc-plated finish 6-8 micron (EV)
• Paint system for C3M (2L)
• Grooved drum (GD)
• 2 drum compartment (2D) or multiple up to 8 (XD)
• Suitable for floor mounting (FM)
• Free-spooling device for pulling applications (FS)
• Free-spooling device with additional brake (FSB)
• ATEX certified zone 2 and 22 (EX)
  • CE II 3G Ex IIC T4 Gc, -20°C
  • CE II 3D Ex IIIC T135°C Dc, -20°C
• Custom options possible – on request

ACCESSORIES

• Steel or stainless steel wire rope
• Pulley block
• Electric or air motor as from WW1000
