Customer Specification
A client approached Red Rooster Lifting, a global lifting equipment manufacturer, seeking to replace their outdated 5-tonne manual overhead crane. The primary goal was to improve efficiency and safety in their workshop by upgrading to a fully powered overhead crane. The new solution needed to handle the lifting and movement of materials with greater ease and precision while meeting strict European and National Standards, including the Supply of Machinery (Safety) Regulations 2008. The client also required the crane to minimize manual input and reduce the risk of operator fatigue or error.
Key specifications included:
- Safe Working Load (SWL): 5 Tonne
- Span Between Centres: 10m
- Floor to Top Hook Position: 6m
- Duty Class: A5 (frequent use, medium loads)
- Ambient Operating Temperature: -10°C to +40°C
Powered Overhead Crane Solution

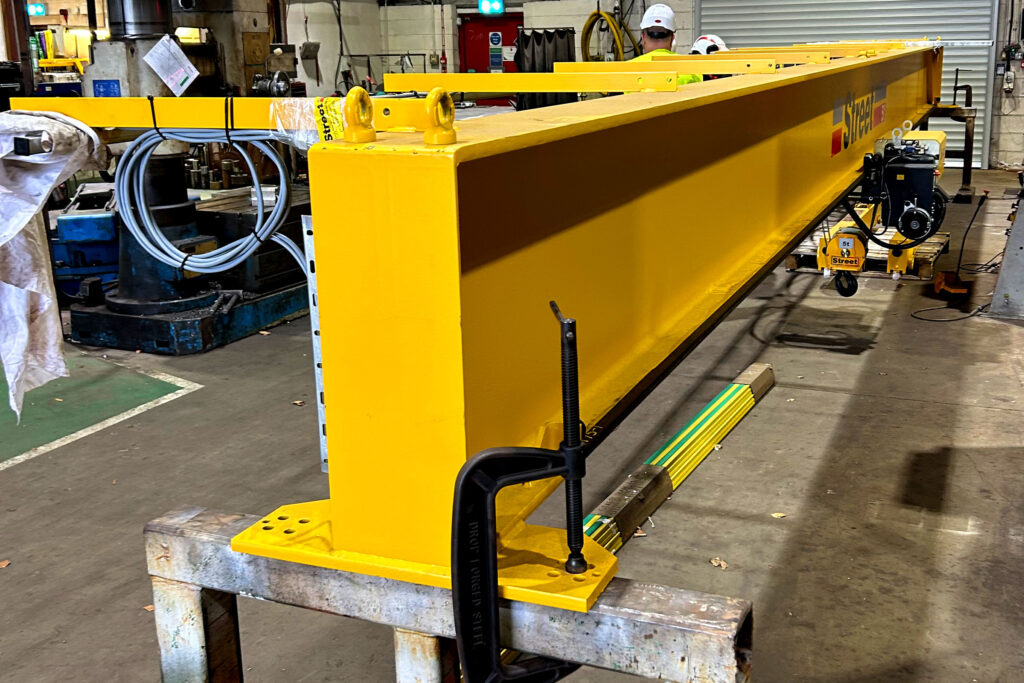

Red Rooster Lifting provided and installed a 5 Tonne Underslung Overhead Single Girder Crane designed to meet the customer’s requirements. The crane was manufactured in compliance with all relevant standards, carrying the CE and UKCA safety marks to ensure regulatory compliance.
Key features of the solution included:

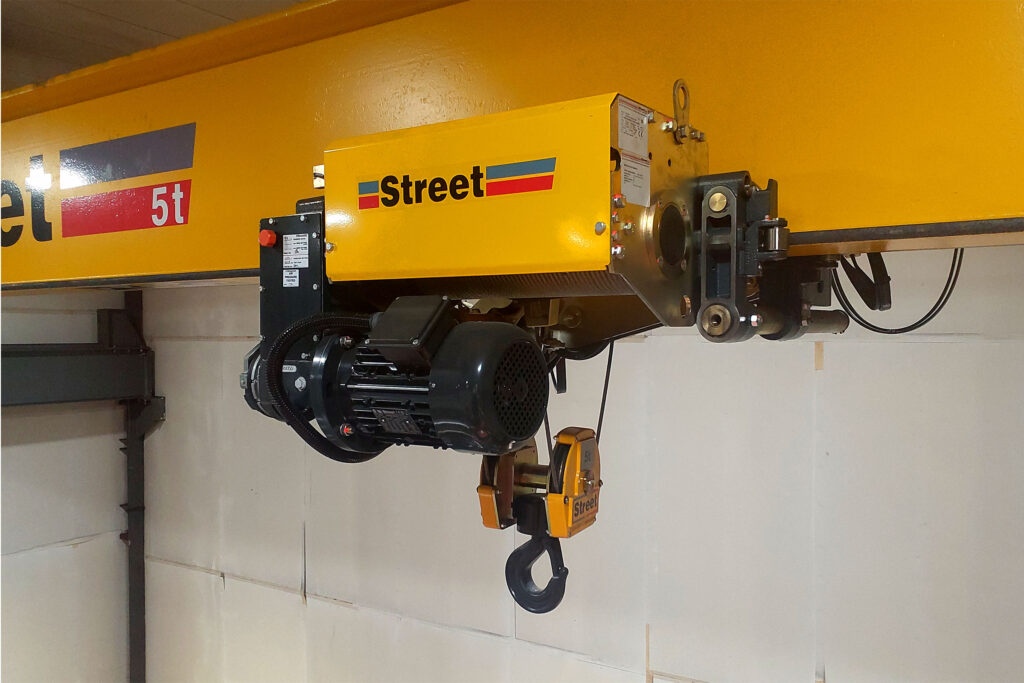

- Hoist: Street ZX06 wire rope hoist with a low-headroom design to maximize lifting height.
- Crane Motion: Dual-speed lifting (4.2/1.4 m/min), inverter-controlled cross travel (2-20 m/min), and long travel speeds (3.2-32 m/min) for smooth and precise operation.
- Control System: A mobile pendant with a 2-step push button for intuitive control of crane motions.
- Paint Finish: Durable coatings in RAL 1003 Yellow and RAL 7021 Black Grey for corrosion resistance and aesthetic appeal.
- Accessories: Comprehensive documentation, including user manuals, certification, and warranty. The installation process involved:
- Removal of the existing manual crane.
- Landing and securing the new crane on long-travel rails.
- Installing a 100-amp conductor rail system for power distribution.
- Full-load testing at 6.25 tonnes (+25% of SWL).
- Issuing thorough examination and test certificates upon completion. The entire process was completed in just 2.5 days, minimizing downtime for the client.
Equipment Purpose
The new crane was designed to significantly improve the handling of materials in the workshop. Its dual-speed lifting and inverter-controlled motion functions offered enhanced precision and control, allowing operators to move loads with minimal effort. By automating lifting tasks, the solution eliminated the need for manual operation, reducing the risk of fatigue, strain, and human error.
The switch from a manual crane to a fully powered overhead crane brought transformative benefits to the customer:
- Enhanced Efficiency: Material handling became faster, smoother, and more reliable with automated crane motions and precise controls.
- Improved Safety: Certification to CE and UKCA standards ensured compliance with safety regulations, while the elimination of manual input reduced operator risks.
- Minimized Downtime: The seamless installation and commissioning process caused minimal disruption, and the 12-month warranty provided peace of mind.
- Future-Proof Solution: With a modern design and compliance with crane duty class in accordance to ISO 4301-1 standards, the crane supports frequent use under demanding conditions, ensuring long-term performance.
This upgrade from a manual to a powered crane enabled the client to optimize operations, reduce risks, and meet the demands of their growing workshop.
